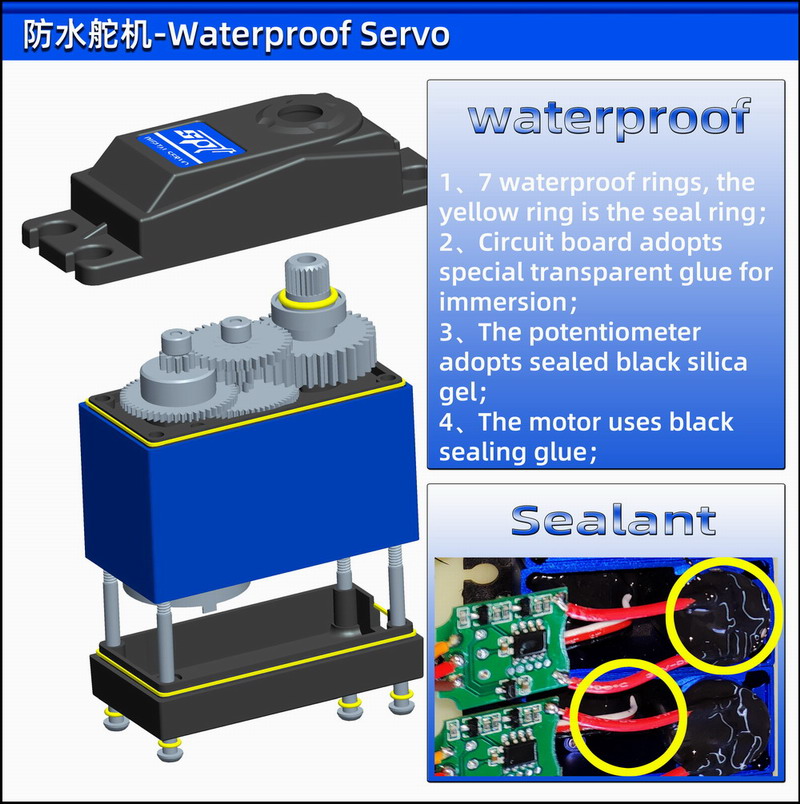

SPT5425LV-W/Waterproof/25kg/Remote Control Car/SPT Servo/Large torque/Large angle/Metal gear/Digital servo
| Adaptive Range | Remote control vehicle, remote control aircraft, remote control ship and remote control. |
 |
|
SPT5425LV-W---------------Parameter Update Date：2021/6/7
| Brand: | SPT Servo | Potentiometer: | Mechanics | |||||
| Motor: | Core | Voltage Range: | 4.8V/6.0V | |||||
| Neutral Point: | 1500μs | Signal Frequency: | 330Hz | |||||
| PWM Voltage: | 3.3V-5.0V | PWM Voltage: | 3.3V-5.0V | |||||
| Feedback Angle: | No | Operating Temperature: | -10℃-50℃ | |||||
| Cycle: | 20ms | Dead band: | 4μs | |||||
| Default Direction: | CCW | Yes / no Lock: | Lock | |||||
| Remote control Angle: | 90° | 500-2500μs Angle: | /° / PWM | |||||
| Quiescent Current: | 50mAh | Rated Current: | 1.2A | |||||
| Blocking Current: | 2.5A | Weight / Dimensions: | 57g / 40.5*20*40.5mm | |||||
| Output Gear: | Futaba 25T | Gear Material: | All Metal Gear | |||||
| Shell Material: | Half Aluminum Shell | Bearing: | 2BB | |||||
| Connector Wire Length: | 260MM | line Definition: | Brown-/Red+/Orange s | |||||
| Operating Speed: |
|
|||||||
| Stall Torque: |
|
|||||||
