Short Body/180 Degrees/SPT4412LV-180/12kg/SPT Servo/Metal gear/Digital servo

 Adaptive Range Remote control vehicle, remote control aircraft, remote control ship and remote control.
SPT4412LV-180---------------Parameter Update Date:2021/6/7
 Brand:  SPT Servo  Potentiometer:  Mechanics
 Motor:  Core  Voltage Range:  4.8V/6.0V
 Neutral Point:  1500μs  Signal Frequency:  330Hz
 PWM Voltage:  3.3V-5.0V  PWM Voltage:  3.3V-5.0V
 Feedback Angle:  No  Operating Temperature:  -10℃-50℃
 Cycle:  20ms  Dead band:  4μs
 Default Direction:  CCW  Yes / no Lock:  Lock
 Remote control Angle:  90°  500-2500μs Angle:  180° / PWM
 Quiescent Current:  10mAh  Rated Current:  1.0A

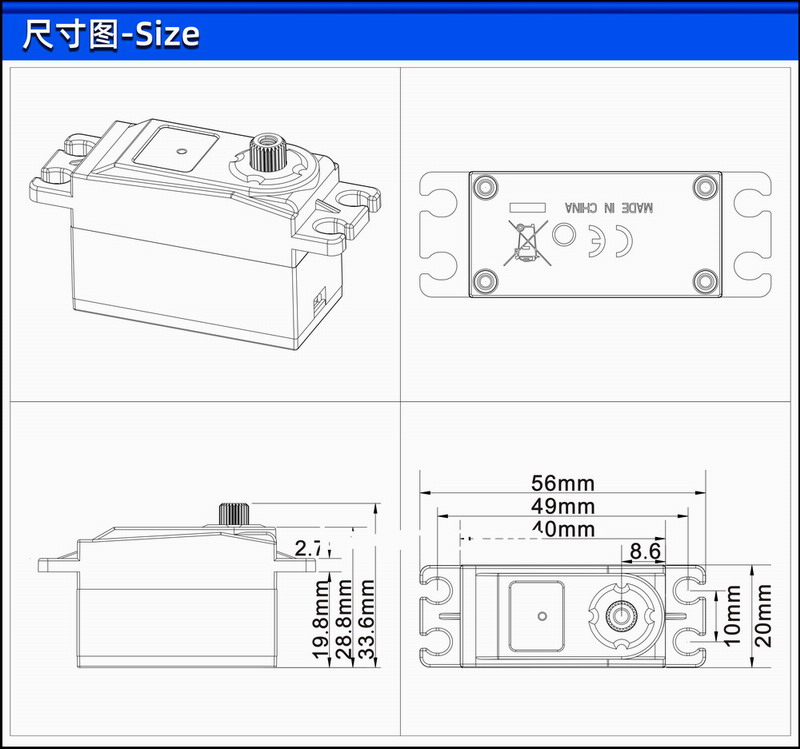

 Blocking Current:  1.8A  Weight / Dimensions:  50g / 40*20*28.3mm
 Output Gear:  Futaba 25T  Gear Material:  All Metal Gear
 Shell Material:  Half Aluminum Shell  Bearing:  2BB
 Connector Wire Length:  260MM  line Definition:  Brown-/Red+/Orange s
 Operating Speed:
 4.8V/0.11''/60°  6.0V/0.09''/60°  /
 Stall Torque:
 4.8V10 kg.cm  6.0V/12 kg.cm  /
