SPT5632-360/360 Continuous Rotation/SPT Servo/Large torque/Large angle/Metal gear/Digital servo

 Adaptive Range
SPT5632-360---------------Parameter Update Date:2021/6/7
 Brand:  SPT Servo  Potentiometer:  Mechanics
 Motor:  Coreless  Voltage Range:  4.8V/6.0V/8.4V
 Neutral Point:  1500μs  Signal Frequency:  330Hz
 PWM Voltage:  3.3V-5.0V  PWM Voltage:  3.3V-5.0V
 Feedback Angle:  No  Operating Temperature:  -10℃-50℃
 Cycle:  20ms  Dead band:  2μs
 Default Direction:  CCW  Yes / no Lock:  No Lock
 Remote control Angle:  °  500-2500μs Angle:  ° / PWM
 Quiescent Current:  10mAH  Rated Current:  1.5A

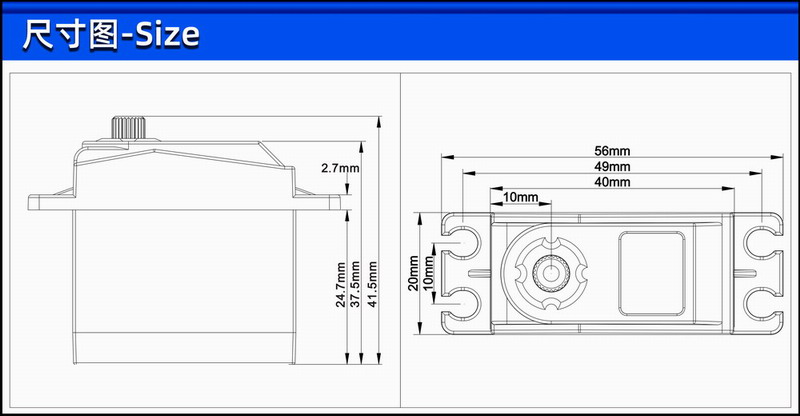

 Blocking Current:  2.5A  Weight / Dimensions:  58g /
 Output Gear:  Futaba 25T  Gear Material:  All Metal Gear
 Shell Material:  Half Aluminum Shell  Bearing:  2BB
 Connector Wire Length:  260MM  line Definition:  Brown-/Red+/Orange s
 Operating Speed:
 4.8V/ 56rpm  6.0V/ 70rpm  7.4V/ 86rpm
 Stall Torque:
 /  /  /
Introduction

1470μs-1530μs stop
1470μs-1000μs has linear variation and rotates /CCW
1000μs-500μs maximum revolutions /CCW
1530μs-2000μs has linear variation and rotates /CW
2000μs-2500μs maximum revolutions /CW
